The presentation of obstructive and central events, which are reliably identified by the OPP technology used in SOMNOsoft 2e, gives the doctor a solid basis for decisions about therapy suited to the patient’s indication. The SD memory card contributes greatly to the optimization of work processes.

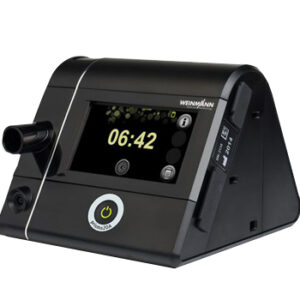

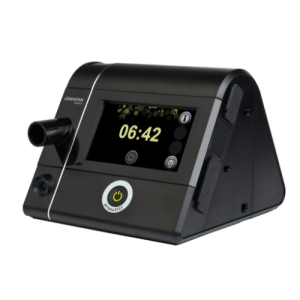

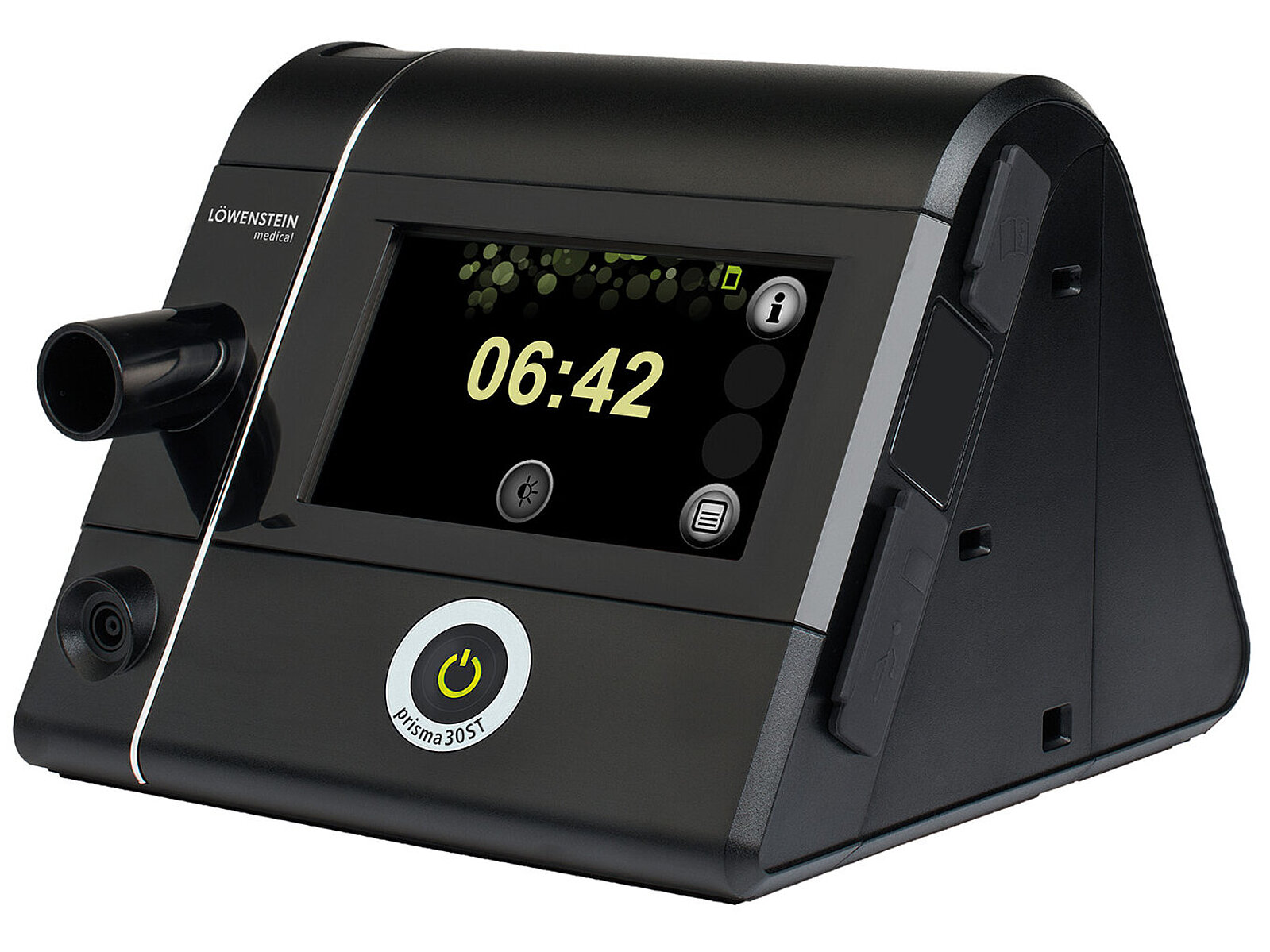

Prisma 30 ST
Product class as per Directive 93/42/EEC: lla Dimensions (W x H x D) 170 x 135 x 180 mm Weight about 1.4 kg Temperature range Operation: +5 °C to +40 °C Storage: -25 °C to +70 °C Permitted humidity, operation and storage rel. humidity 15 % to 93 %, no condensation Air pressure range 700 – 1060 hPa coresponds to altitude of 3000 meters Diameter of breathing tube connection (mask) 19.5 mm (fits standard tapered connector Electric rating max. 40 VA System interface 12 V DC max. 10 VA Power consumption in 230 V 115 V Operation (therapy): 0.11 A 0.22 A Standby: 0.036 A 0.019 A Classification as per EN 60601-1-11 Type of protection from electric shock Protection class II Level of protection from electric shock: Type BF Protection from damaging ingress of water and solids: IP21 Alarms severe leakage, disconnection (tube), long apnea, low minute volume, low tidal volume Modes CPAP, APAP, S, S/T, T, autoS/T, aPCV Mean sound pressure/Operation as per ISO 80601-2-70 about 26.5 dB(A) at 10 hPa (corresponds to sound pressure of 34.5 dB(A) CPAP operating pressure range 4 to 20 hPa BILevel operating pressure range 4 to 30 hPa Relative inspiration time Ti/Tset 25% to 67% Trigger Inspiration (Trigger IN) auto or can be set at 3 levels Trigger Expiration (Trigger EX) auto or can be set at 3 levels Pressure rise (Ramp IN) can be set at 4 levels Pressure reduction (Ramp EX) can be set at 3 levels Back up frequency 0; 6 to 35 bpm Adjustable target volume can be set in 3 speed levels Pressure accuracy Peak flow as per ISO 80601-2-70, modes BI level,
4.0 hPa 235 l/min 10.5 hPa 225 l/min 17.0 hPa 215 l/min 23.5 hPa 200 l/min 25.0 hPa 195 l/min Stability of the dynamic pressure (short-term accuracy) for 10 breaths/min as per ISO 17510-1:2007 when using the 19 mm hose. 7.0 hPa Δp≤0.24 hPa 10.0 hPa Δp≤0.28 hPa 13.5 hPa Δp≤0.3 hPa 20.0 hPa Δp≤0.4 hPa Rs.140,000.00
We have marked a distinct position in the market by offering superior quality Ventilogic LS. Our provided products are compact and mobile enough to optimize workflow and workspace usage. They offer versatility and a high degree of safety, thanks to their practical mobility and monitoring options and unique ventilation functions. These products are flexible, advanced and clinically safe respiratory solution that enables patients to safely make the transition from hospital to home.

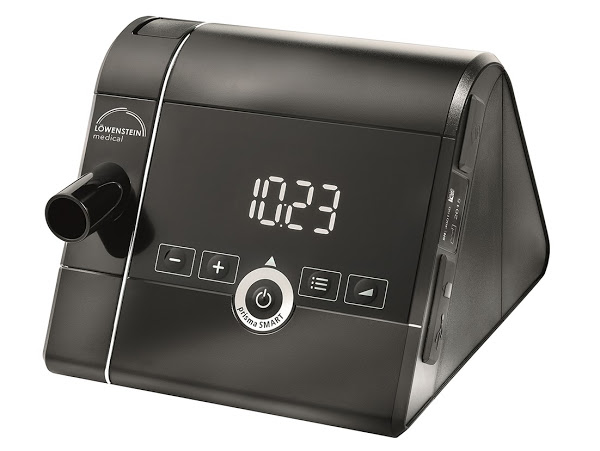

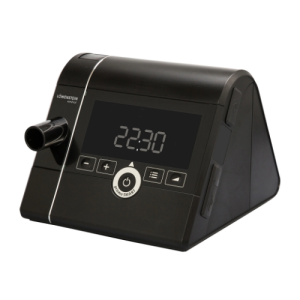

With help from Forced Oscillation Technique (FOT), prisma SMART reliably distinguishes obstructive from central apnea. In response to identified events, the APAP therapy device responds automatically with continuous pressure adjustments to satisfy your patients’ needs. The combination of CPAP and APAP modes with comfortable pressure relief softPAP in prisma SMART offers you greater treatment flexibility and convenience.
Reliable: With the oscillatory pressure signal (FOT) to differentiate between central and obstructive apnea; now with a more pleasant breathing sensation for patients
Precise: Identification of periodic breathing, RERA, snoring, hypopnea and flow limitations
Therapy flexibility for treatment of Obstructive Sleep Apnea (OSA) With assistance from Forced Oscillation Technique (FOT), prisma20A reliably distinguishes between obstructive and central apnea. In response to events, the APAP therapy device automatically and continuously adjusts pressure exactly to the needs of your patients. Because the CPAP and APAP modes can be combined with the gentle pressure relief softPAP, prisma20A offers a high degree of therapy flexibility and comfort. Major features of prisma20A: Reliable technology (FOT) distinguishes obstructive sleep apnea from central sleep apnea With pressure relief softPAP High resolution therapy data for 14 days and detailed statistics for 365 days Improved compliance, thanks to comfort functions such as softSTART, autoSTART-STOP and therapy feedback Integrated tube heating prevents condensation in tube and mask

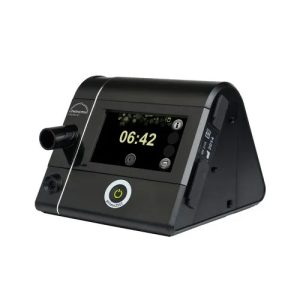

Prisma 25ST Rental & Sales
prisma25ST, the BILevel-ST therapy device in the prismaLINE
Like all device variants in the prismaLINE, prisma 25ST offers intutitive navigation
and parameter setting to simplify and accelerate user operation.
Maximum flexibility with setting or indication-specific pre-settings (SCOPES):
prisma25ST leaves room for individually tailored solutions. Perfect for patients
with obstructive, mixed or complex sleep apnea with comorbidities.
Equipped with automatic backup frequency, apnea differentiation by FOT
and many process and comfort supporting features, prisma25ST provides reliable,

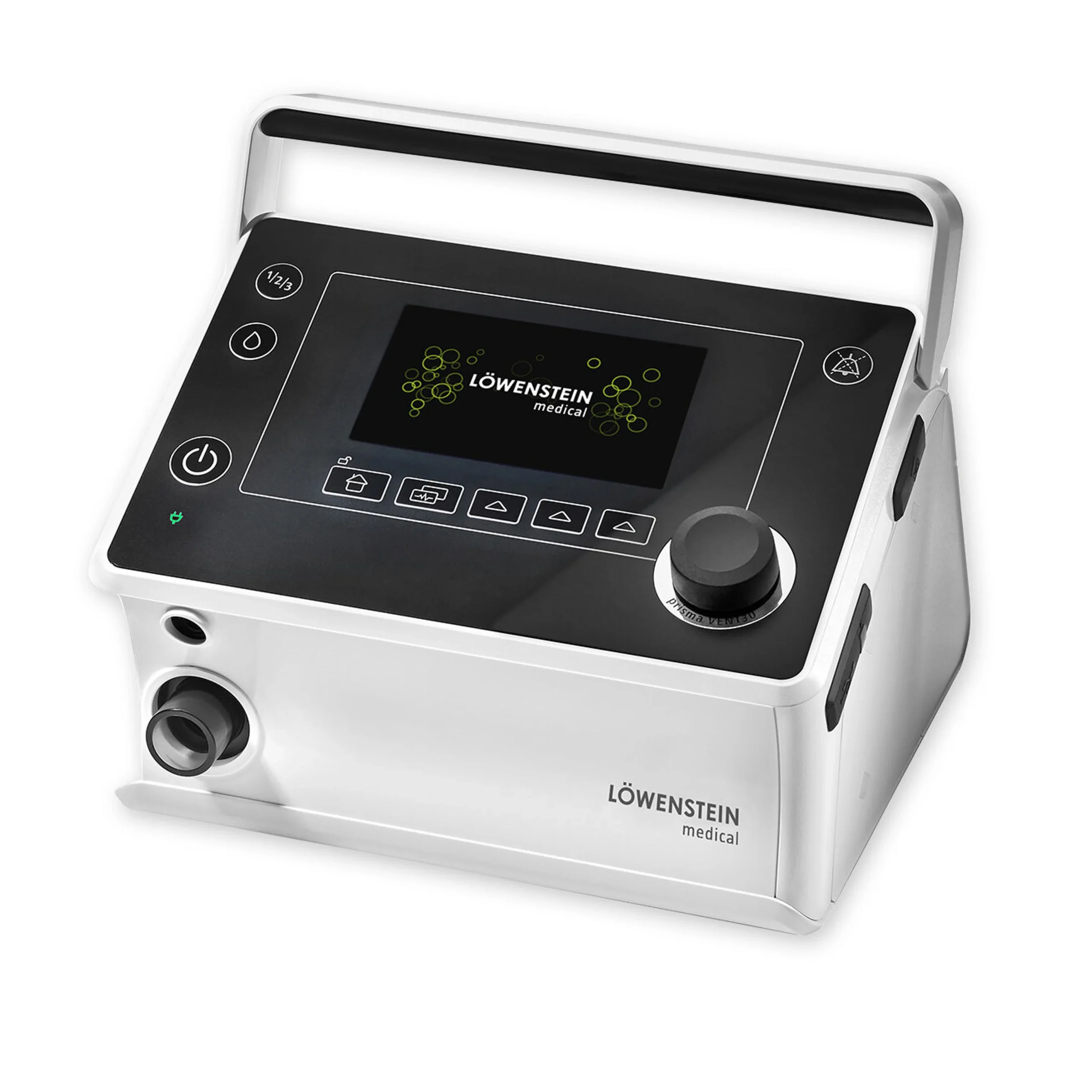

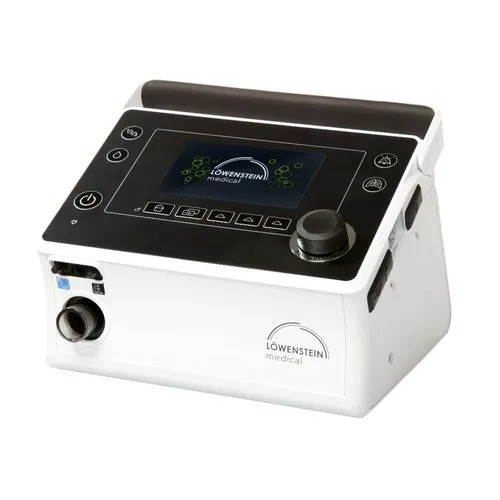

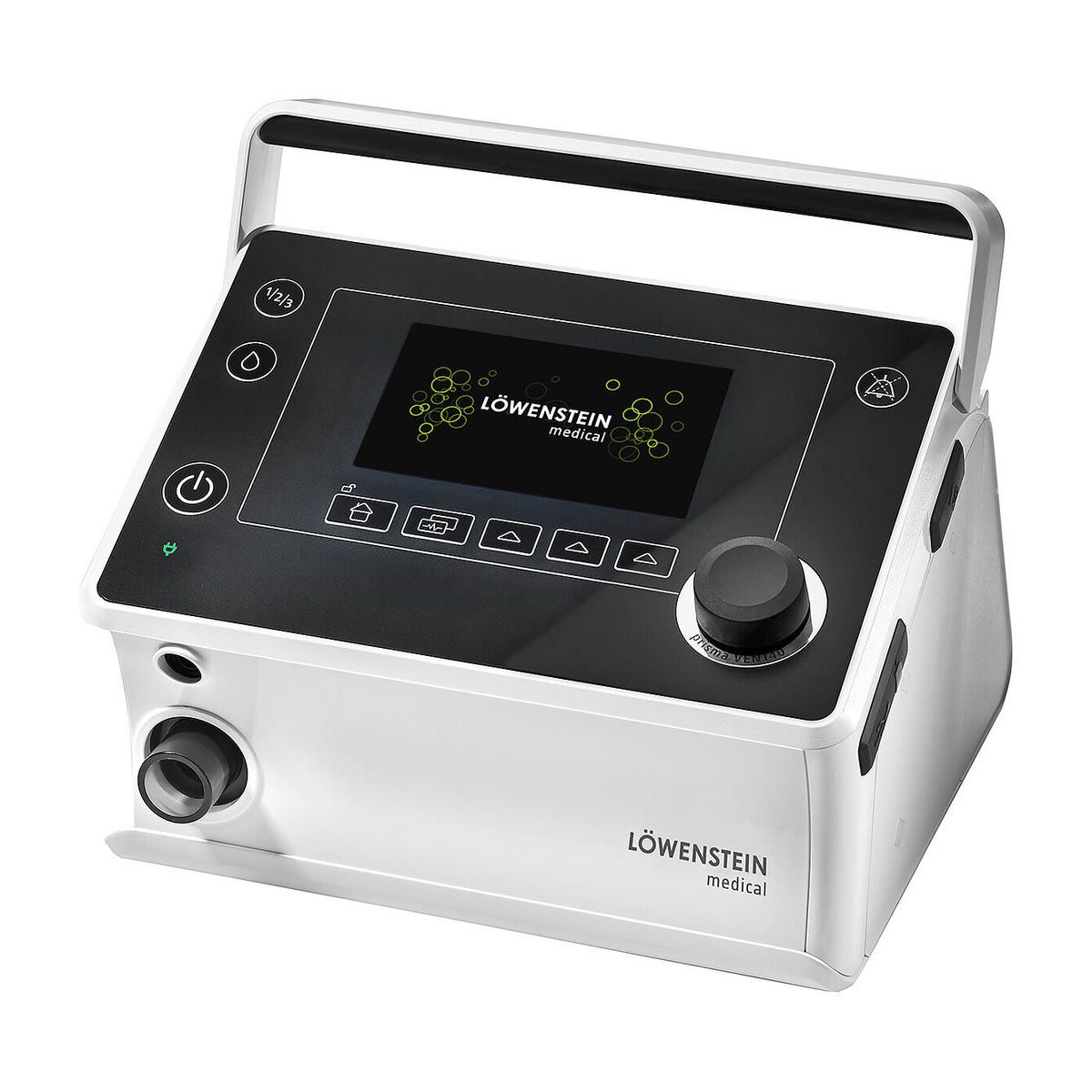

PRISMA VENT 40 Rental

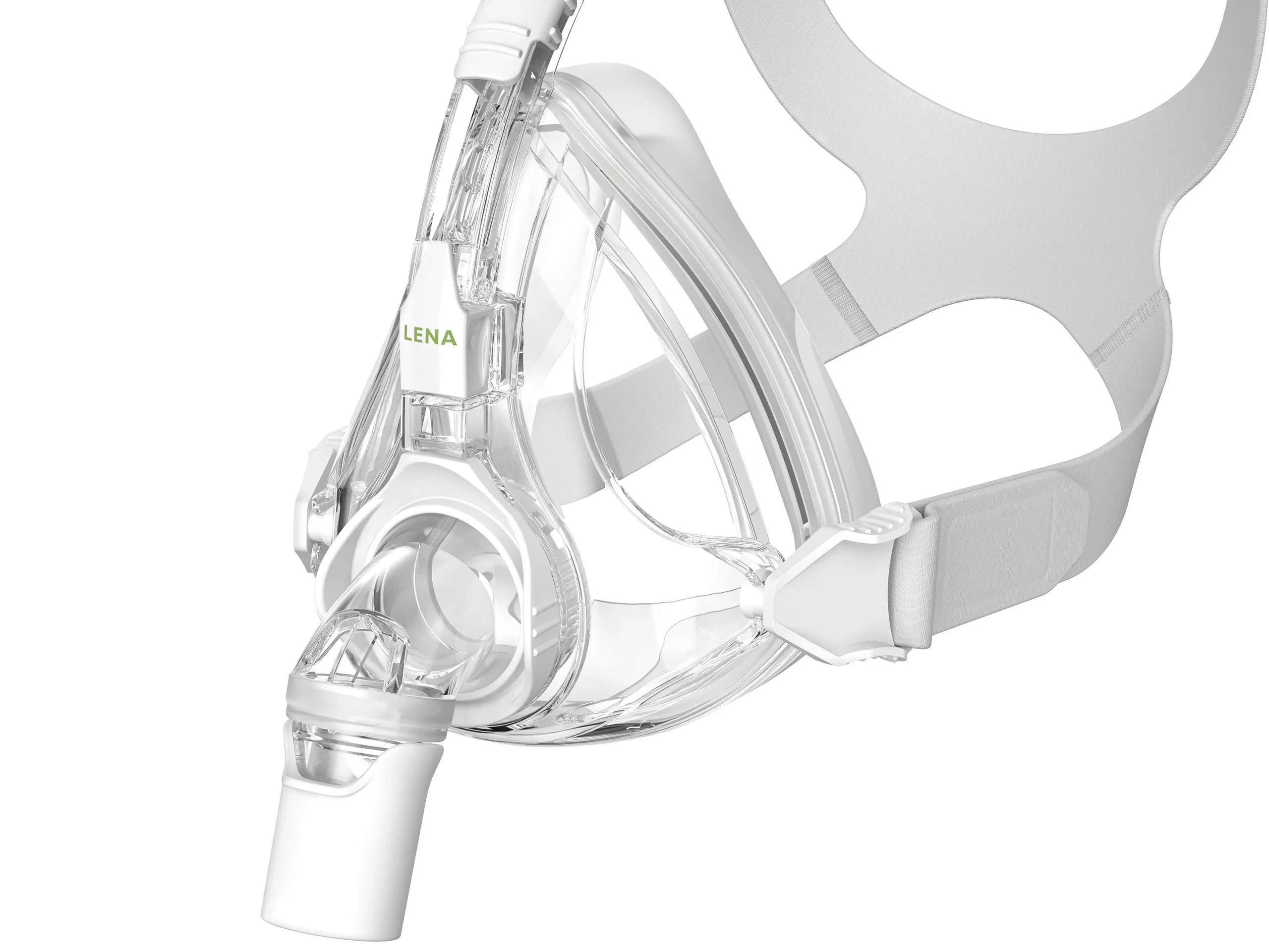

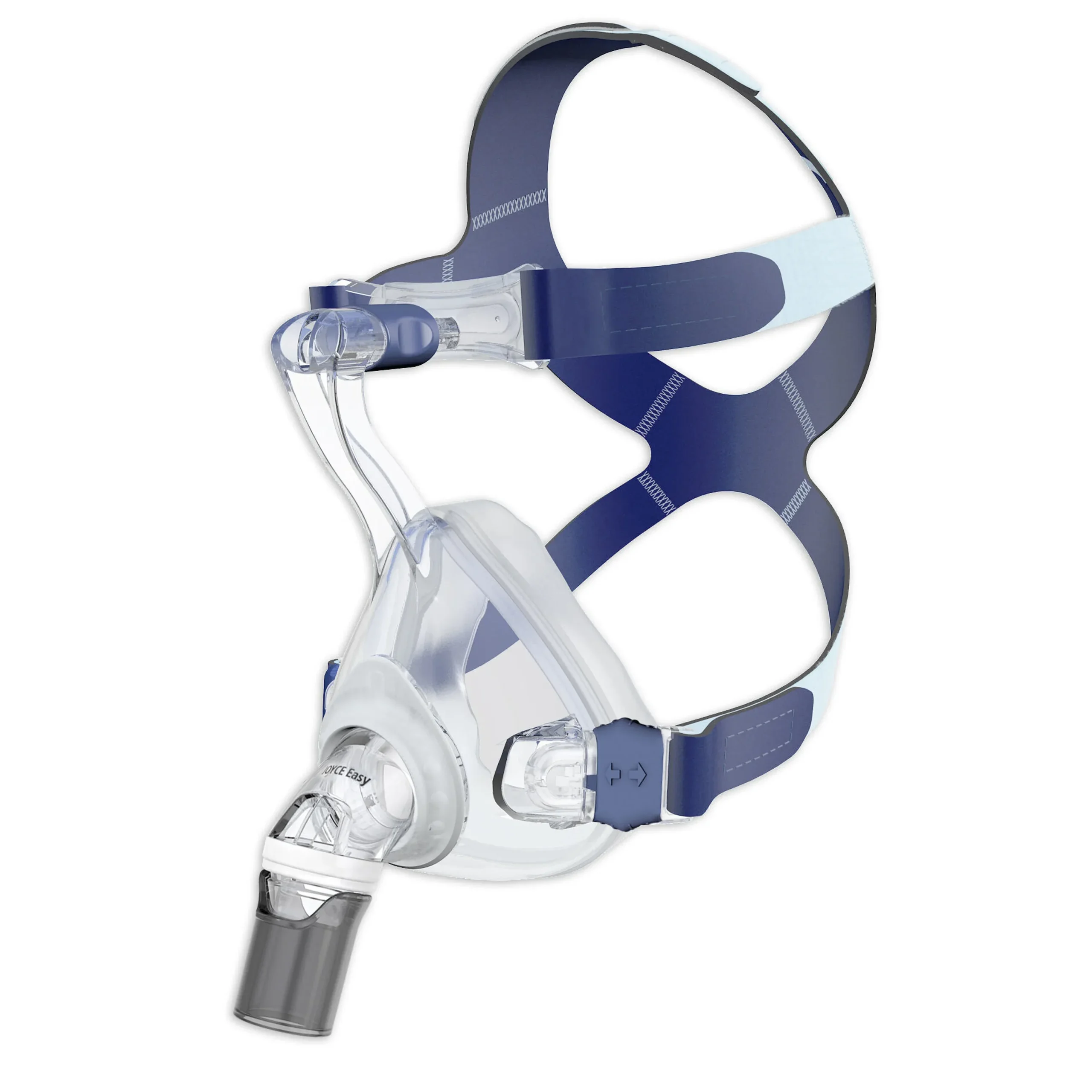

JOYCE Full Face SilkGel
- Easy to adjust, perfect fit
- WEINMANN SilkTec coating increases wearing comfort
- Simple cleaning because nothing adheres to the smooth surface
- Pressure range from 4 to 40 mbar
- Many replacement parts available
- Ball-and-socket joint provides freedom of movement and a secure fit
- Quick-release cord to detach mask

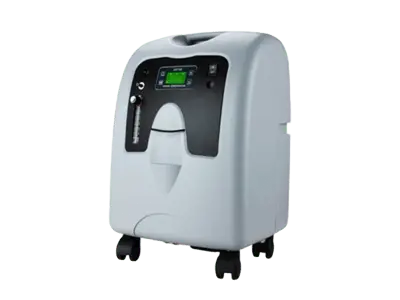

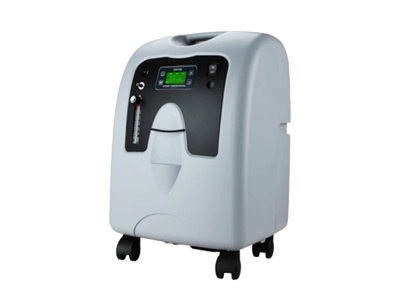

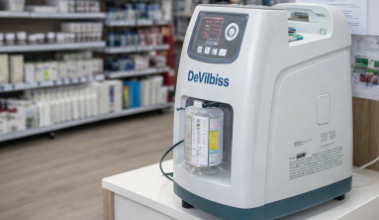

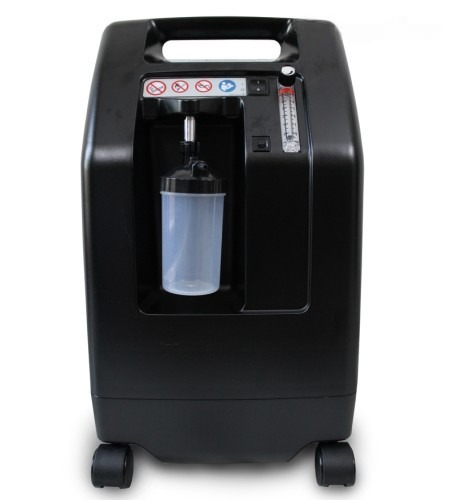

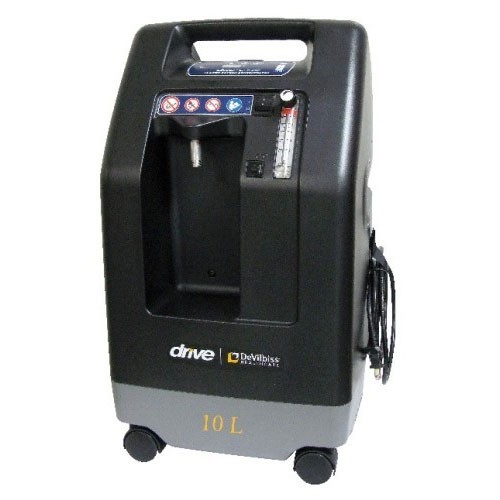

DB525 – 5 Liter Oxygen Concentrator Rental
The concentrator is easy to assemble and disassemble, and it requires no maintenance for two years.
- Manufactured by: Devilbiss Healthcare
- Order includes: Main unit + Humidifier bottle and Nasal Cannula
